Keyless suite entry by mobile app, PIN code, card or concierge key

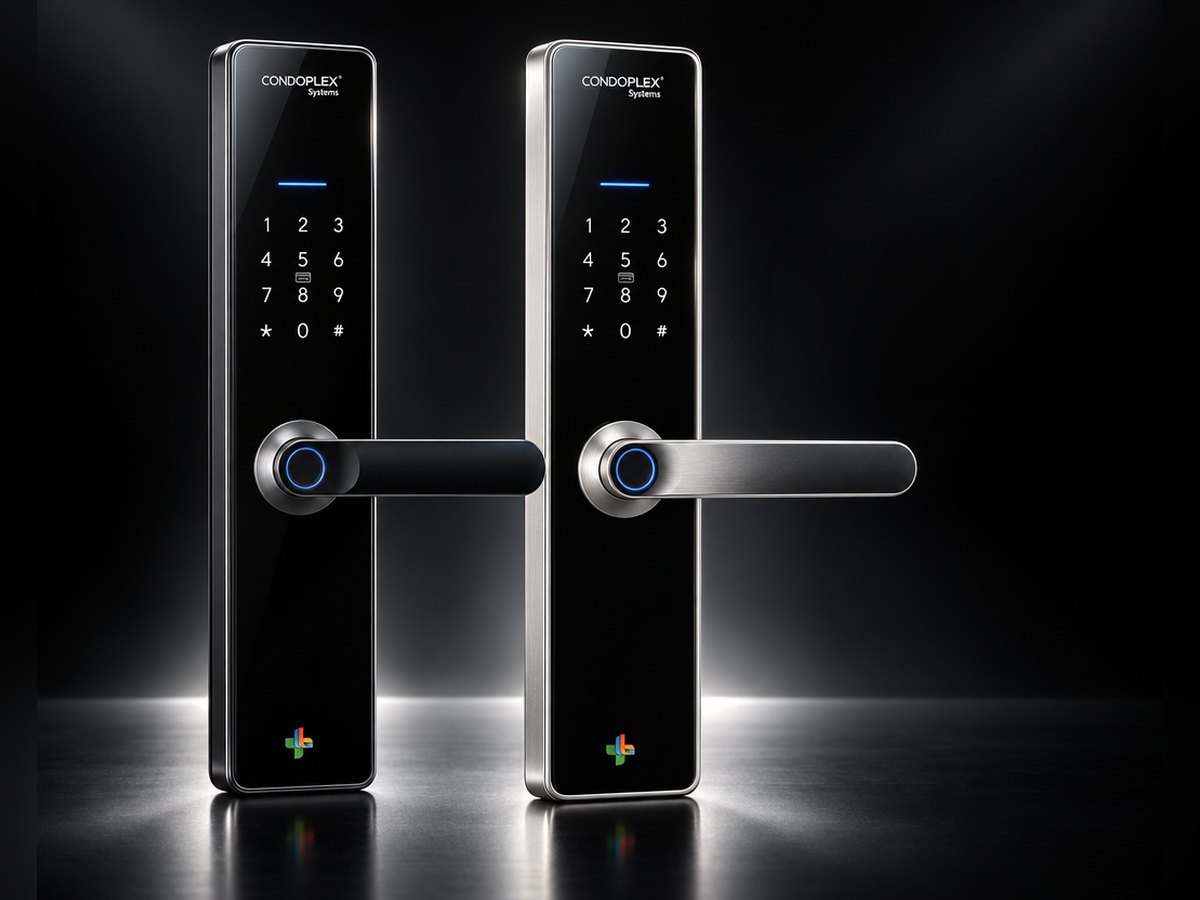

The Condoplex SDL3100 SMART mortise door lock is made from high-strength aluminum alloy and secured with AES encryption and dynamic password technology. Its design suits different door types, and the reversible handle allows flexible installation.
Add the external Bluetooth hub and the lock goes “live” on the building security system, so staff can control the lock and review its audit log over the internet. If the batteries run flat, external power can be applied temporarily to open the lock.
Unlock by mobile app, PIN code, IC card or concierge key
Temporary, recurring and time-limited passwords for guests, cleaners and maintenance staff
Remote management through the app
Tamper detection with alarm and app notifications
Low-battery alerts and emergency external power support
High-capacity storage: up to 120 PIN codes and 125 cards
Quick unlocking in about 1.5 seconds
Customizable access levels and silent mode
AES encryption and dynamic password technology
Weather resistant and low maintenance, with a reversible handle
Enhancements
Built for buildings, not just one door
Multiple access methods
Residents unlock with the mobile app, a PIN code or an IC card, and staff can use a concierge key.
Remote management
Manage access from the app, whether you’re on-site or away.
Custom password options
Create temporary, recurring or time-limited passwords for guests, cleaners or maintenance staff.
External Bluetooth hub
Bring the lock “live” with full integration into the building security system. Control the lock and access its audit log over the internet.
Real-time alerts
Tamper detection triggers an alarm and app notifications, so you know about security events as they happen.
Battery monitoring and access history
Low-battery alerts prevent interruptions, and detailed unlocking records in the app show who accessed the door and when.
Specifications
SDL3100 technical specifications
Material
Aluminum alloy
Certifications
CE, RoHS, FCC, LVD
Colour options
Black, Gold
Power supply
4 × AA alkaline batteries
Operating temperature
−20°C to 70°C (−4°F to 158°F)
PIN code capacity
Up to 120 customizable codes
IC card capacity
Up to 125 entries
Bluetooth version
4.1
Unlocking speed
About 1.5 seconds
Door compatibility
1.49–2.5 in thick (contact your dealer for custom sizes)
At a glance
Lock type
Mortise
Credentials
Mobile app, PIN code, IC card, concierge key
Connectivity
Bluetooth; external Bluetooth hub for building integration
Security
AES encryption, dynamic passwords, tamper alarm
Platform
Property Connect Plus
Features and specifications are subject to change without notice. Contact your Condoplex dealer to select the features best suited to your building. Download the spec sheet (PDF).
FAQs
Frequently asked questions
How do residents unlock the SDL3100?
With the mobile app, a PIN code or an IC card. Staff can also use a concierge key.
Can we give temporary access to cleaners or contractors?
Yes. You can create temporary, recurring or time-limited passwords for guests, cleaners or maintenance staff, and remove them when they’re no longer needed.
Does the lock connect to the building security system?
Yes. With the external Bluetooth hub, the lock goes “live” on the building security system, so staff can control it and review its audit log over the internet.
What happens if the batteries run out?
The app sends low-battery alerts well before that happens. If the batteries do run flat, external power can be applied temporarily to open the lock.
Which doors does it fit?
Doors from 1.49 to 2.5 inches thick. Contact your Condoplex dealer about custom sizes.
